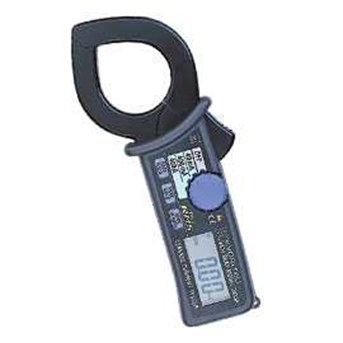

KYORITSU 2433

• Frequency Selector Switch to eliminate the effect of harmonics. • Three AC current ranges : 40mA/400mA/400A. • Data hold function. • Peak hold function. • Sleep function to save battery. • Designed to international safety standard IEC 61010-1 CAT.III 300V AC A (50/60Hz) : 40/400mA/400A |±1%rdg±5dgt (40/400mA) |±1%rdg±5dgt (0~350A) |±2%rdg (350.1~399.9A) AC A (WIDE) : 40/400mA/400A |±1%rdg±5dgt [50/60Hz], |±2.5%rdg±10dgt [20Hz~1kHz] (40/400mA) |±1%rdg±5dgt [50/60Hz], |±2.5%rdg±10dgt [40Hz~1kHz] (0~350A) |±2%rdg [50/60Hz], |±5%rdg [40Hz~1kHz] (350.1~399.9A) Frequency Response : 20Hz~1kHz (40Hz~1kHz:400A) Maximum Circuit Voltage : 600V AC/DC (between line/neutral) 300V AC/DC (against earth) Conductor Size : Ø40mm max. Safety Standard : IEC 61010-1 CAT.III 300V Pollution Degree 2 IEC 61010-2-032 Effect of External Stray Magnetic Field : 10mA AC approx. in proximity to a 15mm-dia conductor carrying 100A AC Withstand Voltage : 3700V AC for 1 minute Response Time : Approx. 2 seconds Power Source : Two R03 or equivalent (DC1.5V) batteries Dimensions : 185(L) × 81(W) × 32(D)mm Weight : 270g approx. Accessories : 9052 (Carrying Case) R03 (1.5V) × 2 Instruction Manual Optional : 8004/8008 (Multi-Tran)* * These Multi-Trans can not be used for leakage current measurement
